Модель | Международный размер | Объем теоретического выстрела | Зажимная сила | Пространство между галстуками | Всплеск вскрытия пресс-формы |
400MBE | 4000H-2045 | 1502 | 400 | 700x700 | 1500 |
500MBE | 5000H-2862 | 1910 | 500 | 780x780 | 1750 |
600MBE | 6000h-4462 | 2767 | 600 | 880x880 | 1800 |
850MBE | 8500H-4971 | 3613 | 850 | 1000x1000 | 2000 |
1050MBE | 10500H-7746 | 4752 | 1050 | 1100x1100 | 2350 |
1450MBE | 14500H-9614 | 7433 | 1450 | 1300x1300 | 2460 |
1850MBE | 18500H-15369 | 11486 | 1850 | 1600x1600 | 2600 |
2300MBE | 23000H-25143 | 18158 | 2300 | 1800x1800 | 2800 |
DIRECT CLAMPING FORCE BUILT UP BY MULTIPLE CYLINDERS

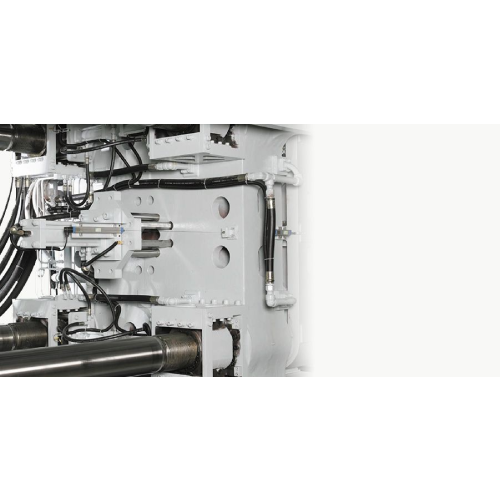

The actuator of the clamping force is installed on the fixed platen of the conventional two platens injection molding machine. The design of the MBE model has four sets of traveling cylinders inside of the movable platen to close the mold and to build up the clamping force at the center of the platen. Thus, the force is distributed evenly on the platen and creates zero deflection when the injection force activates. The clamping force makes a full release before the mold opens, so there is no issue of failed opening such as a mechanical deformation of the toggle under the conditions of a long cycle. The standard feature of the proportional valve with LVDT feedback achieves high precision of mold open-end position.
ГИБКОЕ ИЗМЕНЕНИЕ ОТКРЫТИЯ ХОДА И ТОЛЩИНЫ ФОРМЫ
Имеется длинный ход открытия, обеспечивающий высокую гибкость формы, требующей большей толщины, и при необходимости его можно увеличить. Максимальная высота формы, дневной свет или ход выталкивателя могут быть изменены по специальному запросу. Цилиндры с двойным перемещением устанавливаются в противоположном углу неподвижной плиты, чтобы сократить цикл сушки и облегчить доступ к зоне продувки и форсунке.
