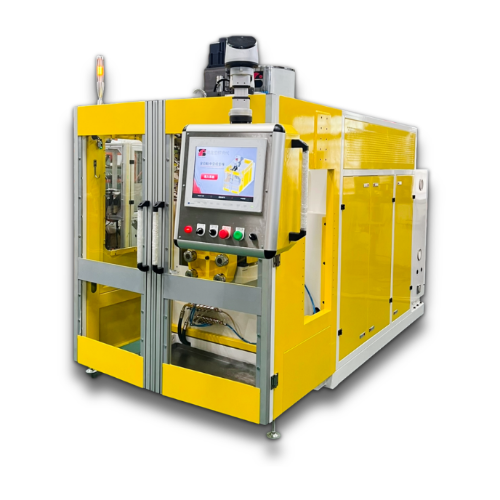

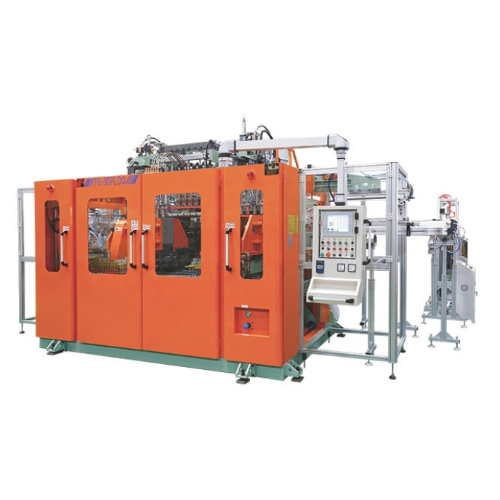

классификация: Автоматическая выдувная машина
Applications:
Все виды бутылок и контейнеров
Продукты, связанные с продуктами питания и напитками
Образ жизни и косметика
сельское хозяйство
Автомобильные приложения
Строительные материалы
Промышленные детали и компоненты
Посуда и кухня
Спорт и Открытый
Бутылки для моющих средств
Бутылки для мытья рук
Пластиковые бутылки
Контейнеры Shell
Контейнеры с тонкой оболочкой
Круглые контейнеры с тонкой оболочкой
Ящики для игрушек
Лейки
Бутылки сока
Чайники
Бутылки с молоком
ПЭТ-бутылки
Вода / Чайные бутылки
Бутылки йогурта
Косметические бутылки
Бутылки с пестицидами
Ведра для пестицидов
Емкости для соляной кислоты HDPE
Ведра для льда
Канистры / ведра
Бутылки со смазкой
Катиться по мячу
Ролл на бутылках
Теннисные бутылки
Резервуары для воды
Воздушный фильтр
Воздухопровод
Автозапчасти
Ведра
Ручные инструменты
Конвейерные ленты
Чипсы из бутылочек HDPE
Емкости для масла / Емкости для пищевых продуктов
Бутылки для мороженого
Бутылки Соуса
Подлокотник стула
Основание стула
Стулья
Чайники
Ручка
Рукоятка
Тушь для ресниц
Велосипедные стойки
Компоненты велосипеда
Крышки ковшей
Ведра
Подошва для велосипедной обуви
Товары для улицы
Страна: Тайвань
Телефон: 886-4-22765071
факс: 886-4-22765070
Контактное лицо: Ms. Huang
| Модель | FS-40 HSSO | FS-45 HSSO | FS-55 HSSO | FS-65 HSSO |
| ТИП | Одиночная головка / одиночная станция | |||
| материал | PE / PP | PE / PP | PE / PP | PE / PP |
| Диаметр винта (м / м) | 40 | 45 | 55 | 65 |
| Отношение L / D винтов (L / D) | 24/1 | 24/1 | 24/1 | 24/1 |
• Сенсорный экран HMI (опция), включающий систему ПЛК для удобства обслуживания.
• Тонкие стальные направляющие для быстрого открытия пресс-формы и закрывания с горизонтальным движением вагонов методом линейного скольжения.
• & nbsp; винтовой привод с помощью прямого монтажа коробки передач и инверторного двигателя.
• Головка пресс-формы с устройством подъема головки для быстрой экструзии материала.
• & nbsp; Блок выдувания, приводимый в действие гидравлическим двигателем для изменения формы легко - инновационный дизайн.
• Тонкие стальные направляющие для быстрого открытия пресс-формы и закрывания с горизонтальным движением вагонов методом линейного скольжения.
• & nbsp; винтовой привод с помощью прямого монтажа коробки передач и инверторного двигателя.
• Головка пресс-формы с устройством подъема головки для быстрой экструзии материала.
• & nbsp; Блок выдувания, приводимый в действие гидравлическим двигателем для изменения формы легко - инновационный дизайн.
| SCREW DIAMETER(M/M) | MACHINE SERIES | MOLD HEAD(DIE HEAD) | MOLD STATION | PRODUCT TYPE |
| FS-40 | (H) Horizontal | (S) Single Mold Head | (S) Single Mold Station | (O) Original |
| FS-45 | (P) Parallel | (D) Double Mold Heads | (D) Double Mold Stations | (C) Two Colors |
| FS-55 | (O) Standard / Oblique | (T) Three Mold Heads | (D) Two Layers | |
| FS-65 | (A) Pneumatic | (F) Four Mold Heads | (T) Three Layers | |
| FS-75 | (L) Frontal | (E) Eight Mold Heads | (F) Four Layers | |
| FS-80 | (I) Lateral | (L) Six Layers | ||
| FS-90 | (V) View Stripe | |||
| FS-100 | (P) PC baby bottle | |||
| Example | ||||
| FS-65 | P | D | S | D |
| MODEL | FS-40 HSSO | FS-45 HSSO | FS-55 HSSO | FS-65 HSSO | FS-75 HSSO |
| Material | PE/PP | PE/PP | PE/PP | PE/PP | PE/PP |
| Screw diameter(m/m) | 40 | 45 | 55 | 65 | 75 |
| Screw L/D ratio(L/D) | 24/1 | 24/1 | 24/1 | 24/1 | 24/1 |
| Screw R.P.M speed(r.p.m.) | 20-66 | 15-61 | 15-60 | 15-60 | 15-58 |
| Inveter motor(HP) | 7.5 | 7.5 | 10 | 15 | 25 |
| Oil hydraulic drive motor(HP) | 5 | 7.5 | 10 | 10 | 15 |
| Optional air compressor(HP) | 5 | 5 | 7.5 | 7.5 | 10 |
| Air pressurer(kg/cm2) | 4-6 | 4-6 | 4-6 | 5-7 | 5-7 |
| Clamping force(Ton) | 1.5 | 3.9 | 4.4 | 5.6 | 10 |
| Oil tank capacity(Gallon) | 38 | 55 | 60 | 80 | 120 |
| Nunber of heaters(ZONE) | 5 | 4 | 4 | 6 | 5 |
| Heating capacity(KW) | 8 | 9.5 | 12.5 | 16.8 | 18 |
| Total installed power(KW) | 18 | 21 | 30 | 35 | 48 |
| Extruding capacity per hour(kg/hr) | 15 | 24 | 36 | 55 | 75 |
| Dry cycle per hour(time/hr) | 1285 | 1030 | 880 | 720 | 650 |
| Product capacity(c.c./L) | 15-500 | 60-1000 | 150-2500 | 500-5000 | 1L-10L |
| Product weight(g.) | 5-40 | 10-100 | 20-170 | 40-280 | 80-500 |
| Min./Max. diameter of product(m/m) | 10-75 | 20-100 | 30-140 | 50-200 | 80-260 |
| Extruding mouth outer diameter(m/m) | 50 | 56 | 80 | 150 | 200 |
| Mold center distance(m/m) | * | * | * | * | * |
| Clamping distance(m/m) | 120-230 | 130-320 | 140-410 | 150-540 | 160-670 |
| Length of mold capacity(m/m) | 100-300 | 126-232 | 156-292 | 200-400 | 236-452 |
| Width of mold capacity(m/m) | 300 | 300 | 350 | 420 | 480 |
| Machine net weight(kg) | 2300 | 2800 | 3300 | 4200 | 7100 |
| Machine dimension(m) | 2.9*1.37*2.3 | 3*1.4*2.3 | 3*1.5*2.3 | 3.6*1.6*2.6 | 4.2*1.7*2.7 |
| MODEL | FS-40 HDSO | FS-45 HDSO | FS-55 HDSO | FS-65 HDSO | FS-75 HDSO |
| Material | PE/PP | PE/PP | PE/PP | PE/PP | PE/PP |
| Screw diameter(m/m) | 40 | 45 | 55 | 65 | 75 |
| Screw L/D ratio(L/D) | 24/1 | 24/1 | 24/1 | 24/1 | 24/1 |
| Screw R.P.M speed(r.p.m.) | 20-66 | 15-61 | 15-60 | 15-60 | 15-58 |
| Inveter motor(HP) | 5 | 7.5 | 10 | 15 | 40 |
| Oil hydraulic drive motor(HP) | 5 | 7.5 | 10 | 10 | 20 |
| Optional air compressor(HP) | 5 | 5 | 7.5 | 7.5 | 10 |
| Air pressurer(kg/cm2) | 4-6 | 4-6 | 4-6 | 5-7 | 5-7 |
| Clamping force(Ton) | 2.8 | 3.9 | 4.4 | 5.6 | 10 |
| Oil tank capacity(Gallon) | 38 | 55 | 60 | 80 | 120 |
| Nunber of heaters(ZONE) | 6 | 6 | 7 | 9 | 9 |
| Heating capacity(KW) | 7.5 | 10.25 | 13.6 | 17.5 | 25 |
| Total installed power(KW) | 15.5 | 22 | 33 | 45 | 56 |
| Extruding capacity per hour(kg/hr) | 15 | 24 | 36 | 55 | 85 |
| Dry cycle per hour(time/hr) | 1285 | 1030 | 880 | 720 | 650 |
| Product capacity(c.c./L) | 15-200 | 40-500 | 100-1250 | 280-1800 | 0.5L-2.5L |
| Product weight(g.) | 4-25 | 5-40 | 10-100 | 20-170 | 40-170 |
| Min./Max. diameter of product(m/m) | 10-65 | 20-70 | 30-85 | 40-100 | 40-130 |
| Extruding mouth outer diameter(m/m) | 38 | 42 | 50 | 65 | 80 |
| Mold center distance(m/m) | 85 | 100 | 120 | 160 | 250 |
| Clamping distance(m/m) | 120-230 | 130-320 | 140-410 | 150-540 | 160-670 |
| Length of mold capacity(m/m) | 100-210 | 126-232 | 156-292 | 200-400 | 236-452 |
| Width of mold capacity(m/m) | 230 | 300 | 350 | 420 | 480 |
| Machine net weight(kg) | 2400 | 3000 | 3400 | 4400 | 7300 |
| Machine dimension(m) | 2.3*1.4*2.2 | 3*1.4*2.3 | 3*1.5*2.3 | 3.8*2.1*2.6 | 4.3*3*2.9 |
| MODEL | FS-40 HTSO | FS-45 HTSO | FS-55 HTSO | FS-65 HTSO | FS-75 HTSO | |
| Material | PE/PP | PE/PP | PE/PP | PE/PP | PE/PP | |
| Screw diameter(m/m) | 40 | 45 | 55 | 65 | 75 | |
| Screw L/D ratio(L/D) | 24/1 | 24/1 | 24/1 | 24/1 | 24/1 | |
| Screw R.P.M speed(r.p.m.) | 20-66 | 15-61 | 15-60 | 15-60 | 15-58 | |
| Inveter motor(HP) | 5 | 7.5 | 10 | 15 | 25 | |
| Oil hydraulic drive motor(HP) | 5 | 7.5 | 10 | 10 | 15 | |
|
7.5 | 7.5 | 10 | 10 | 15 | |
| Air pressurer(kg/cm2) | 4-6 | 4-6 | 5-7 | 5-7 | 5-7 | |
| Clamping force(Ton) | 2.8 | 3.9 | 4.4 | 6.9 | 10 | |
| Oil tank capacity(Gallon) | 38 | 55 | 60 | 80 | 120 | |
| Nunber of heaters(ZONE) | 8 | 8 | 9 | 10 | 10 | |
| Heating capacity(KW) | 8.5 | 12 | 15 | 19.3 | 21.5 | |
| Total installed power(KW) | 16.5 | 23.5 | 32 | 47 | 52.5 | |
| Extruding capacity per hour(kg/hr) | 15 | 24 | 36 | 55 | 75 | |
| Dry cycle per hour(time/hr) | 1250 | 1000 | 850 | 720 | 650 | |
| Product capacity(c.c./L) | 10-125 | 20-325 | 40-825 | 100-1000 | 180-1500 | |
| Product weight(g.) | 3-10 | 5-25 | 10-50 | 10-90 | 15-145 | |
| Min./Max. diameter of product(m/m) | 10-45 | 20-55 | 30-55 | 30-80 | 30-95 | |
| Extruding mouth outer diameter(m/m) | 30 | 37 | 40 | 55 | 80 | |
| Mold center distance(m/m) | 75+75 | 85+85 | 100+100 | 120+120 | 120+120 | |
| Clamping distance(m/m) | 120-230 | 130-320 | 140-410 | 150-540 | 160-670 | |
| Length of mold capacity(m/m) | 100-210 | 126-232 | 156-292 | 200-380 | 236-452 | |
| Width of mold capacity(m/m) | 230 | 300 | 350 | 420 | 480 | |
| Machine net weight(kg) | 2600 | 3200 | 3700 | 4700 | 7600 | |
| Machine dimension(m) | 2.3*1.4*2.2 | 3*1.4*2.3 | 3*1.5*2.3 | 3.8*2.1*2.6 | 4.2*1.7*2.7 |
| MODEL | FS-55 HFSO | FS-65 HFSO | FS-75 HFSO | FS-90 HFSO |
| Material | PE/PP | PE/PP | PE/PP | PE/PP |
| Screw diameter(m/m) | 55 | 65 | 75 | 90 |
| Screw L/D ratio(L/D) | 24/1 | 24/1 | 24/1 | 24/1 |
| Screw R.P.M speed(r.p.m.) | 15-60 | 15-60 | 15-58 | 15-58 |
| Inveter motor(HP) | 15 | 20 | 30 | 50 |
| Oil hydraulic drive motor(HP) | 10 | 10 | 15 | 15 |
| Optional air compressor(HP) | 15 | 15 | 20 | 20 |
| Air pressurer(kg/cm2) | 6-8 | 6-8 | 6-8 | 6-8 |
| Clamping force(Ton) | 4.4 | 5.6 | 10 | 13 |
| Oil tank capacity(Gallon) | 60 | 80 | 120 | 250 |
| Nunber of heaters(ZONE) | 11 | 17 | 13 | 15 |
| Heating capacity(KW) | 16.5 | 21.3 | 25.7 | 30 |
| Total installed power(KW) | 37.5 | 47 | 61 | 80 |
| Extruding capacity per hour(kg/hr) | 36 | 55 | 75 | 10 |
| Dry cycle per hour(time/hr) | 750 | 750 | 650 | 650 |
| Product capacity(c.c./L) | 30-300 | 100-500 | 300-1000 | 500-2500 |
| Product weight(g.) | 10-25 | 10-40 | 15-90 | 40-170 |
| Min./Max. diameter of product(m/m) | 20-55 | 30-55 | 30-90 | 30-90 |
| Extruding mouth outer diameter(m/m) | 37 | 42 | 50 | 75 |
| Mold center distance(m/m) | 90+90 | 90+90 | 120+120 | 120+120 |
| Clamping distance(m/m) | 140-410 | 150-540 | 160-670 | 160-670 |
| Length of mold capacity(m/m) | 156-292 | 200-380 | 236-452 | 250-550 |
| Width of mold capacity(m/m) | 380 | 450 | 510 | 550 |
| Machine net weight(kg) | 4000 | 5000 | 7900 | 9500 |
| Machine dimension(m) | 3.1*1.8*2.3 | 4.23*2.6*3 | 4.3*2*2.7 | 5.2*3.1*3.5 |
| MODEL | FS-45 HSDO | FS-55 HSDO | FS-65 HSDO | FS-75 HSDO |
| Material | PE/PP | PE/PP | PE/PP | PE/PP |
| Screw diameter(m/m) | 45 | 55 | 65 | 75 |
| Screw L/D ratio(L/D) | 24/1 | 24/1 | 24/1 | 24/1 |
| Screw R.P.M speed(r.p.m.) | 15-61 | 15-60 | 15-60 | 15-58 |
| Inveter motor(HP) | 7.5 | 10 | 15 | 30 |
| Oil hydraulic drive motor(HP) | 7.5 | 10 | 10 | 15 |
| Optional air compressor(HP) | 10 | 15 | 15 | 20 |
| Air pressurer(kg/cm2) | 4-6 | 4-6 | 5-7 | 5-7 |
| Clamping force(Ton) | 3.9 | 4.4 | 6.9 | 10 |
| Oil tank capacity(Gallon) | 60 | 80 | 120 | 160 |
| Nunber of heaters(ZONE) | 4 | 4 | 5 | 5 |
| Heating capacity(KW) | 9.5 | 12.5 | 16.8 | 18 |
| Total installed power(KW) | 22 | 28 | 37 | 53 |
| Extruding capacity per hour(kg/hr) | 24 | 36 | 55 | 75 |
| Dry cycle per hour(time/hr) | 1030*2 | 880*2 | 720*2 | 650*2 |
| Product capacity(c.c./L) | 40-500 | 65-1250 | 150-2500 | 500-5000 |
| Product weight(g.) | 5-40 | 10-100 | 20-170 | 40-280 |
| Min./Max. diameter of product(m/m) | 10-75 | 20-100 | 30-140 | 50-200 |
| Extruding mouth outer diameter(m/m) | 56 | 80 | 150 | 200 |
| Mold center distance(m/m) | * | * | * | * |
| Clamping distance(m/m) | 130-320 | 140-410 | 150-540 | 160-670 |
| Length of mold capacity(m/m) | 126-232 | 156-292 | 200-380 | 236-452 |
| Width of mold capacity(m/m) | 250 | 300 | 330 | 360 |
| Machine net weight(kg) | 6400 | 6900 | 7400 | 8300 |
| Machine dimension(m) | 3*1.8*2.5 | 3*1.9*2.5 | 3.2*2*2.8 | 4.2*2.1*2.9 |
| MODEL | FS-45 HDDO | FS-55 HDDO | FS-65 HDDO | FS-75 HDDO |
| Material | PE/PP | PE/PP | PE/PP | PE/PP |
| Screw diameter(m/m) | 45 | 55 | 65 | 75 |
| Screw L/D ratio(L/D) | 24/1 | 24/1 | 24/1 | 24/1 |
| Screw R.P.M speed(r.p.m.) | 15-61 | 15-60 | 15-60 | 15-58 |
| Inveter motor(HP) | 10 | 10 | 15 | 30 |
| Oil hydraulic drive motor(HP) | 7.5 | 10 | 10 | 15 |
| Optional air compressor(HP) | 10 | 15 | 15 | 20 |
| Air pressurer(kg/cm2) | 4-6 | 4-6 | 5-7 | 5-7 |
| Clamping force(Ton) | 3.9 | 4.4 | 6.9 | 10 |
| Oil tank capacity(Gallon) | 60 | 80 | 120 | 160 |
| Nunber of heaters(ZONE) | 6 | 7 | 8 | 8 |
| Heating capacity(KW) | 10.25 | 13.6 | 17.5 | 19 |
| Total installed power(KW) | 26 | 30 | 38 | 54 |
| Extruding capacity per hour(kg/hr) | 32 | 36 | 55 | 75 |
| Dry cycle per hour(time/hr) | 1030*2 | 880*2 | 720*2 | 650*2 |
| Product capacity(c.c./L) | 30-200 | 40-500 | 100-1000 | 280-2000 |
| Product weight(g.) | 4-20 | 5-40 | 10-65 | 20-110 |
| Min./Max. diameter of product(m/m) | 10-65 | 20-70 | 30-85 | 40-110 |
| Extruding mouth outer diameter(m/m) | 42 | 50 | 65 | 80 |
| Mold center distance(m/m) | 100 | 120 | 140 | 160 |
| Clamping distance(m/m) | 130-320 | 140-410 | 150-540 | 160-670 |
| Length of mold capacity(m/m) | 126-232 | 156-292 | 200-380 | 236-452 |
| Width of mold capacity(m/m) | 250 | 300 | 330 | 360 |
| Machine net weight(kg) | 6500 | 7000 | 7500 | 8500 |
| Machine dimension(m) | 3*1.8*2.5 | 3.2*2*2.8 | 3.4*3*3 | 4.2*3.1*3.1 |
| MODEL | FS-55 HTDO | FS-65 HTDO | FS-75 HTDO |
| Material | PE/PP | PE/PP | PE/PP |
| Screw diameter(m/m) | 55 | 65 | 75 |
| Screw L/D ratio(L/D) | 24/1 | 24/1 | 24/1 |
| Screw R.P.M speed(r.p.m.) | 15-60 | 15-60 | 15-58 |
| Inveter motor(HP) | 10 | 15 | 30 |
| Oil hydraulic drive motor(HP) | 10 | 10 | 15 |
| Optional air compressor(HP) | 15 | 15 | 20 |
| Air pressurer(kg/cm2) | 4-6 | 5-7 | 5-7 |
| Clamping force(Ton) | 4.4 | 6.9 | 10 |
| Oil tank capacity(Gallon) | 110 | 120 | 160 |
| Nunber of heaters(ZONE) | 9 | 10 | 10 |
| Heating capacity(KW) | 15 | 19.3 | 21.5 |
| Total installed power(KW) | 32 | 40 | 56.5 |
| Extruding capacity per hour(kg/hr) | 36 | 55 | 75 |
| Dry cycle per hour(time/hr) | 850*2 | 720*2 | 650*2 |
| Product capacity(c.c./L) | 15-300 | 50-600 | 100-1000 |
| Product weight(g.) | 5-25 | 8-45 | 10-70 |
| Min./Max. diameter of product(m/m) | 10-55 | 20-70 | 30-90 |
| Extruding mouth outer diameter(m/m) | 40 | 55 | 80 |
| Mold center distance(m/m) | 85+85 | 100+100 | 120+120 |
| Clamping distance(m/m) | 140-410 | 150-540 | 160-670 |
| Length of mold capacity(m/m) | 156-292 | 200-380 | 236-452 |
| Width of mold capacity(m/m) | 300 | 330 | 360 |
| Machine net weight(kg) | 7100 | 7600 | 8700 |
| Machine dimension(m) | 3.4*2*2.8 | 3.6*3*3 | 4.4*3.1*3.1 |
| MODEL | FS-55 HFDO | FS-65 HFDO | FS-75 HFDO |
| Material | PE/PP | PE/PP | PE/PP |
| Screw diameter(m/m) | 55 | 65 | 75 |
| Screw L/D ratio(L/D) | 24/1 | 24/1 | 24/1 |
| Screw R.P.M speed(r.p.m.) | 15-60 | 15-60 | 15-58 |
| Inveter motor(HP) | 15 | 20 | 30 |
| Oil hydraulic drive motor(HP) | 10 | 10 | 15 |
| Optional air compressor(HP) | 15 | 15 | 20 |
| Air pressurer(kg/cm2) | 6-8 | 6-8 | 6-8 |
| Clamping force(Ton) | 4.4 | 6.9 | 10 |
| Oil tank capacity(Gallon) | 80 | 120 | 160 |
| Nunber of heaters(ZONE) | 11 | 13 | 13 |
| Heating capacity(KW) | 16.5 | 20.8 | 25.7 |
| Total installed power(KW) | 37.5 | 48 | 61 |
| Extruding capacity per hour(kg/hr) | 36 | 55 | 75 |
| Dry cycle per hour(time/hr) | 750*2 | 750*2 | 650*2 |
| Product capacity(c.c./L) | 50-250 | 100-400 | 200-600 |
| Product weight(g.) | 5-20 | 10-30 | 20-50 |
| Min./Max. diameter of product(m/m) | 20-55 | 20-55 | 20-70 |
| Extruding mouth outer diameter(m/m) | 37 | 42 | 50 |
| Mold center distance(m/m) | 85+85+85 | 85+85+85 | 100+100+100 |
| Clamping distance(m/m) | 140-410 | 150-540 | 160-670 |
| Length of mold capacity(m/m) | 156-292 | 200-380 | 236-452 |
| Width of mold capacity(m/m) | 300 | 330 | 360 |
| Machine net weight(kg) | 7200 | 7700 | 8900 |
| Machine dimension(m) | 3.4*2.2*3.1 | 3.6*2.3*3.2 | 4.4*3.3*3.3 |
| MODEL | FS-40 HSSD | FS-45 HSSD | FS-55 HSSD | FS-65 HSSD | FS-75 HSSD |
| Material | PE/PP | PE/PP | PE/PP | PE/PP | PE/PP |
| Screw diameter(m/m) | 40/25 | 45/25 | 55/25 | 65/25 | 75/25 |
| Screw L/D ratio(L/D) | 24/1 | 24/1 | 24/1 | 24/1 | 24/1 |
| Screw R.P.M speed(r.p.m.) | 20-66 | 15-61 | 15-60 | 15-60 | 15-58 |
| Inveter motor(HP) | 5/2 | 7.5/2 | 10/2 | 15/2 | 25/2 |
| Oil hydraulic drive motor(HP) | 5 | 7.5 | 10 | 10 | 15 |
| Optional air compressor(HP) | 5 | 5 | 7.5 | 7.5 | 10 |
| Air pressurer(kg/cm2) | 4-6 | 4-6 | 5-7 | 5-7 | 5-7 |
| Clamping force(Ton) | 2.8 | 3.9 | 4.4 | 6.9 | 10 |
| Oil tank capacity(Gallon) | 38 | 55 | 60 | 80 | 120 |
| Nunber of heaters(ZONE) | 6 | 6 | 6 | 7 | 7 |
| Heating capacity(KW) | 9.5 | 12 | 15 | 19.5 | 22 |
| Total installed power(KW) | 19 | 25 | 32 | 40.5 | 44 |
| Extruding capacity per hour(kg/hr) | 15 | 24 | 42 | 55 | 75 |
| Dry cycle per hour(time/hr) | 1285 | 1030 | 880 | 720 | 650 |
| Product capacity(c.c./L) | 15-500 | 60-1000 | 150-2500 | 1L-5L | 1L-10L |
| Product weight(g.) | 5-40 | 10-100 | 20-170 | 40-280 | 80-500 |
| Min./Max. diameter of product(m/m) | 10-75 | 20-100 | 30-140 | 50-200 | 80-260 |
| Extruding mouth outer diameter(m/m) | 50 | 56 | 80 | 150 | 200 |
| Mold center distance(m/m) | * | * | * | * | * |
| Clamping distance(m/m) | 120-230 | 130-320 | 140-410 | 150-540 | 160-670 |
| Length of mold capacity(m/m) | 126-232 | 156-292 | 200-380 | 236-452 | 236-452 |
| Width of mold capacity(m/m) | 230 | 300 | 350 | 420 | 480 |
| Machine net weight(kg) | 2600 | 3100 | 3600 | 4500 | 7400 |
| Machine dimension(m) | 2.6*1.8*2.7 | 3*1.9*2.8 | 3.3*2*2.9 | 3.6*1.6*3 | 3.9*2.2*3.1 |
| MODEL | FS-55 HSSC | FS-65 HSSC | FS-75 HSSC |
| Material | PE/PP | PE/PP | PE/PP |
| Screw diameter(m/m) | 55/55 | 65/65 | 7575 |
| Screw L/D ratio(L/D) | 24/1 | 24/1 | 24/1 |
| Screw R.P.M speed(r.p.m.) | 15-60 | 15-60 | 15-58 |
| Inveter motor(HP) | 10/10 | 15/15 | 25/25 |
| Oil hydraulic drive motor(HP) | 10 | 10 | 15 |
| Optional air compressor(HP) | 7.5 | 7.5 | 10 |
| Air pressurer(kg/cm2) | 5-7 | 5-7 | 5-7 |
| Clamping force(Ton) | 4.4 | 6.9 | 10 |
| Oil tank capacity(Gallon) | 60 | 80 | 120 |
| Nunber of heaters(ZONE) | 6 | 6 | 7 |
| Heating capacity(KW) | 19 | 24.5 | 26 |
| Total installed power(KW) | 43 | 56 | 77 |
| Extruding capacity per hour(kg/hr) | 42 | 55 | 75 |
| Dry cycle per hour(time/hr) | 880 | 720 | 600 |
| Product capacity(c.c./L) | 150-2500 | 1L-5L | 1L-10L |
| Product weight(g.) | 20-170 | 40-280 | 80-500 |
| Min./Max. diameter of product(m/m) | 30-140 | 50-200 | 80-260 |
| Extruding mouth outer diameter(m/m) | 80 | 150 | 200 |
| Mold center distance(m/m) | * | * | * |
| Clamping distance(m/m) | 140-540 | 150-540 | 160-670 |
| Length of mold capacity(m/m) | 200-380 | 236-452 | 236-452 |
| Width of mold capacity(m/m) | 350 | 420 | 480 |
| Machine net weight(kg) | 3600 | 4500 | 7400 |
| Machine dimension(m) | 3.3*2*2.9 | 3.6*2.1*3 | 3.9*2.2*3.1 |
|
Hand washing bottle / cleaning supplies |
Blow Molding Plastic Bottles |
Oil bottle / oil barrel / pesticide |
|
Mask/Closed Wound Drainage Systems |
Household/Cosmetics |
Household/Cleaning product bottle |
|
Household/Cosmetics |
Household/Cosmetics |
Closed Wound Drainage Systems |
|
Toys |
Automotive |
Household/Cosmetics |
|
Outdoor supplies/Bird balls |
Household/Cleaning product bottle |
Mascara bottle |
|
Pesticide bottle |
Household/Cosmetics |
