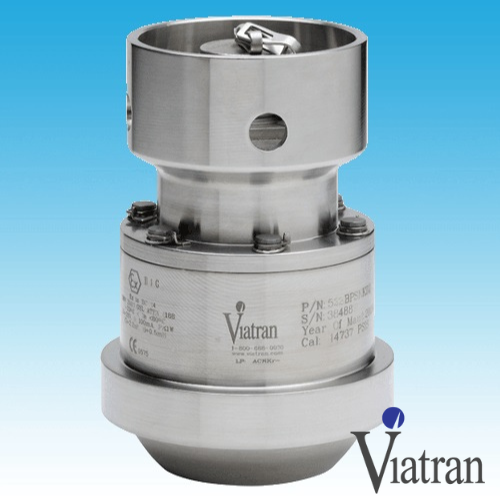

Viatran’s Hammer Union Pressure Transmitters offer superior construction and the rugged performance that we have built our reputation on. Our new generation of Hammer Union Pressure Transmitters incorporate more user-friendly features and optional add-on features than ever before.
Potential applications include Drilling, Acidizing, Choke Manifolds, Extraction, Fracturing and Cementing, Mud Pumps, New Well development. Nitrogen Injection, Service and Cement Trucks, Standpipe, Stimulation and Well head measurement.
Features
1502 Hammer Union Pressure Fitting
RoHS Compliant
ShuntCal
IP-68 Rated
High Pressure Applications
Full Scale Pressure Ranges
Combined Accuracy (BFSL)
Full Scale Output (FSO)
Zero Balance.
Compensated Temperature Range
Operating Temperature Range
Storage Temperature Range
Long Term Stability (%FSO)
Thermal Effect on Zero
Thermal Effect on Span
Features
1502 Hammer Union Pressure Fitting RoHS Compliant ShuntCal
Full Scale Pressure Range
Combined Accuracy (BFSL)
Full Scale Output (FSO)
Zero Balance
Long-Term Stability
Response Time
Compensated Temperature
Operating Temperature
Storage Temperature Limits
Temperature Effect on Zero
Temperature Effect on Span
Features
1502 Hammer Union Pressure Fitting
Performance
Full Scale Pressure Range: 0-5K, 10K, 15K, 20K PSIG (0-345, 689, 1034, 1379 bar)
Combined Accuracy (BFSL): (Non-Linearity, Hysteresis & Repeatability) ≤± 0.25% FSO
Full Scale Output (FSO): 16 mA ±1% FSO
Zero Balance: 4 mA ±1% FSO
Long-Term Stability: ≤±0.25% FSO per 6 months
Response Time: ≤2.5 mSec to reach 90% of FSO
Compensated Temperature: -20°F to 185°F (-29°C to 85°C)
Operating Temperature: -40°F to 200°F (-40°C to 93°C)
Storage Temperature Limits: -67°F to 302°F (-55°C to 150°C)
Temperature Effect on Zero: ≤±1% FSO per 100°F (37°C)
Temperature Effect on Span: ≤±1% FSO per 100°F (37°C)
Features
2002 Hammer Union Pressure Fitting
Many Options available High Pressure Applications ShuntCal
Full Scale Pressure Ranges
Combined Accuracy (BFSL)
Full Scale Output (FSO)
Zero Balance.
Compensated Temperature Range
Operating Temperature Range
Storage Temperature Range
Long Term Stability (%FSO)
Thermal Effect on Zero
Thermal Effect on Span
≤± 1% FSO per 100°F Typical

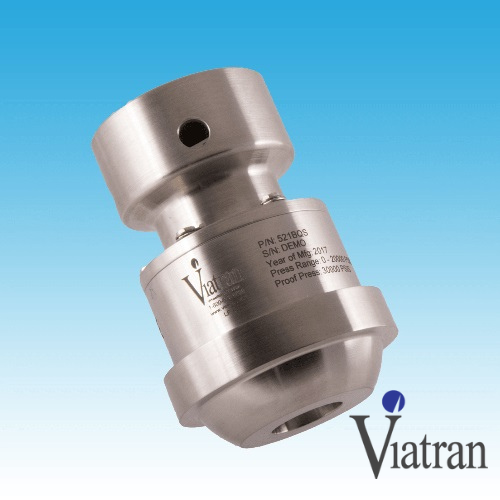

521 is Viatran’s state of the art hammer union pressure transmitter with industry exclusive features that were developed in direct response to requests from the field. Included in these features is a voltage powered shunt cal, ability to calibrate and track pressure spikes using HART software and packaged in a patented housing which can withstand extreme vibration and abusive impact and still perform to specification.
Features
2002 Hammer Union Pressure Fitting
Many Options available
ShuntCal
RoHS Compliant
High-Pressure Applications
Specifications
Expanded compensated temperature range
Improved sealing method for connector pins
External adjust, identification and peak pressure capture
RoHS compliant
Shunt calibration
Potential applications include Acidizing, Choke Manifolds, Extraction, Fracturing and Cementing, Mud Pumps, New Well development, Nitrogen Injection, Service and Cement Trucks, Standpipe, Stimulation and Well head measurement.
Contact us to confirm your choice or to customize the Model 521

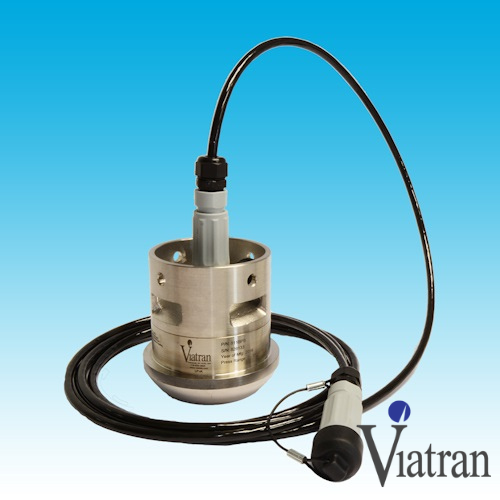

Viatran’s new Model 522 Hammer Union Pressure Transmitter offers superior construction and the rugged performance that we have built our reputation on. This new generation of Hammer Union Pressure Transmitters incorporates more user friendly features and optional add-on features than ever before.
Features
2202 Hammer Union Pressure Fitting
Many Options available
RoHS Compliant
Specification
Designed for use in oil well high pressure pumping applications, these accurate yet rugged instruments are ideally suited to the harsh oil field environment.
Potential applications include Acidizing, Choke Manifolds, Extraction, Fracturing and Cementing,Mud Pumps, New Well development, Nitrogen Injection, Service and Cement Trucks, Standpipe, Stimulation and Well head measurement.
Contact us to confirm your choice or to customize the Model 522.
External Calibration Software Available
Viatran is now able to offer the DevCom 2000-LT Desktop Software for calibration of our 522 Hammer Union Pressure Transmitters.

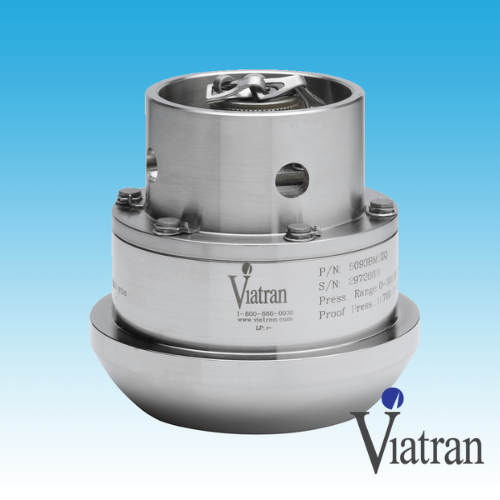

811 is Viatran’s state of the art hammer union pressure transducer with a millivolt output that was developed in direct response to requests from the field. Built with a patented* housing which can withstand extreme vibration, abusive impact and will continue to perform to specification.
Ruggedized Connector Cables sold separately.
Features
1502 Hammer Union Pressure Fitting
RoHS Compliant
IP-68 Rated
High-Pressure Applications
Shunt Calibration Circuit Option
Features
1502 Hammer Union Pressure Fitting ShuntCal High Pressure ApplicationsFull Scale Pressure Range
Combined Accuracy (BFSL)
Full Scale Output (FSO)
Zero Balance
Long-Term Stability
Response Time
Compensated Temperature
Operating Temperature
Storage Temperature Limits
Temperature Effect on Zero
Temperature Effect on Span

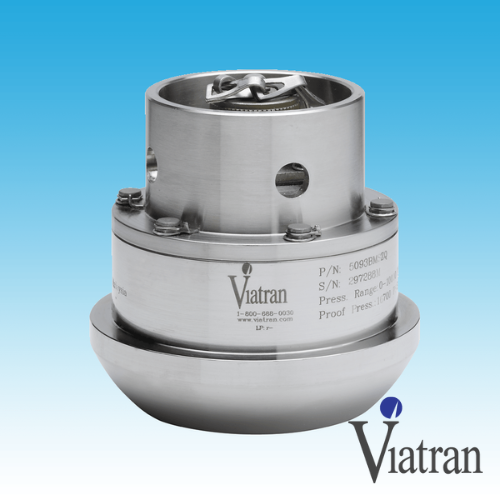

809 is the version of 09 series with no signal conditioner. A variety of sensor materials and electrical connections are available.
Features
High Accuracy
1502 Hammer Union Pressure Fitting
High-Pressure Applications
Performance
Full Scale Pressure Range: 0-5K, 10K, 15K, 20K PSIG (0-345, 689, 1034, 1379 bar)
Combined Accuracy (BFSL): (Non-Linearity, Hysteresis & Repeatability) ≤± 0.25% FSO
Full Scale Output (FSO): 30 mVC ±1% FSO at 10 V excitation
Zero Balance: 0 Vdc ±1% FSO
Long-Term Stability: ≤±0.25% FSO per 6 months
Response Time: ≤2.5 mSec to reach 90% of FSO
Compensated Temperature: -20°F to 185°F (-29°C to 85°C)
Operating Temperature: -40°F to 250°F (-40°C to 121°C)
Storage Temperature Limits: -67°F to 302°F (-55°C to 150°C)
Temperature Effect on Zero: ≤±1% FSO per 100°F (37°C)
Temperature Effect on Span: ≤±1% FSO per 100°F (37°C)
