PT46X4 Series

классификация: Датчики давления расплава

MITSUDELL CO.,LTD.

Страна: Тайвань

Телефон: 886-4-2631-3001

факс: 886-4-2631-7717

Контактное лицо: Harrison Chang

Запрос сейчас

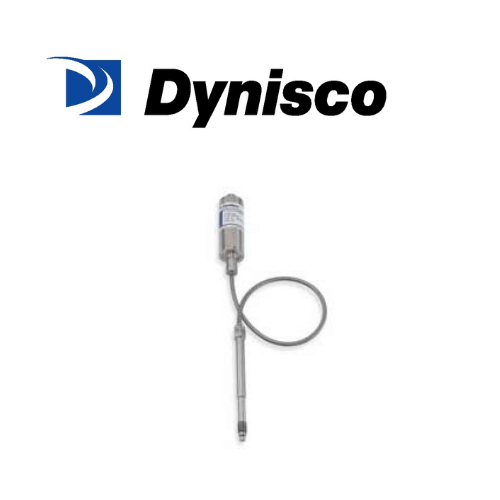

The PT46x4 sensor provides the industry standard 4-20 mA amplified signal designed to work with DCS and PLCs. The PT46X4 comes equipped with adjustable zero and span side-mounted potentiometers. PT46X4 Series mA sensors can be rezeroed in two ways: locally via the zero potentiometer, or remotely via shorting two pins together (contact closure). Optional thermocouple or RTD configurations are available to provide melt temperature. Features a 1/2-20 UNF thread for simple and easy installation in standard transducer mounting holes.

The PT46X4 Series includes models PT4604, PT4624, PT4634, TPT4604, TPT4624, and TPT4634.

Adjustable zero and span, via side-mounted pots
Accuracy better than ±0.5%
DyMax® coated stainless steel wetted parts
4-20 mA output
0-500 to 0-30,000 psi
Internal 80% shunt calibration
3rd-party agency analysis (exida™) and self-certified based on FMEDA analysis and internal audit
Output signal meets Performance Level ‘c’ as defined by the Machinery Directive (Category 1)
Meets the following compliance directives, when properly installed and used:
- –SIL2
- Machinery Directive EN ISO 13849-1
