Система быстрой смены штампов

классификация: СИСТЕМА БЫСТРОГО ИЗМЕНЕНИЯ УМЕРКИ

SANDSUN PRECISION MACHINERY CO., LTD.

Страна: Тайвань

Телефон: 886-4-8282758

факс: 886-4-8282768

Контактное лицо: Garnett Chang

Запрос сейчас

It is an era for making high frequency of die changing with multiple patterns and small quantity. In order to save die changing time and ensure operational safety, it is just in time to apply Quick Die Change System.

APPLICATION

Press & Hydraulic Press
Different Automatic Machine & Clamp System

MODEL CA - MODEL SELECTION

①	②
Capacity of clamp : 1~25(25tons)	EMPTY: Standard type C:Pneumatic cylinder movable type B:Fixed type V:Temperature -resisting type

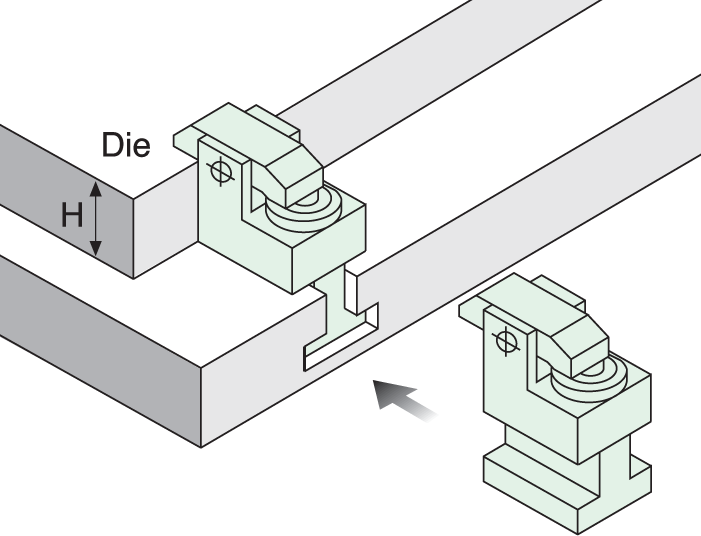

*Please indicate the size of T slot (a,b,c,d) and the thickness (H) of the template for the die when purchasing.

L: Template's length for clamp

Unit:mm

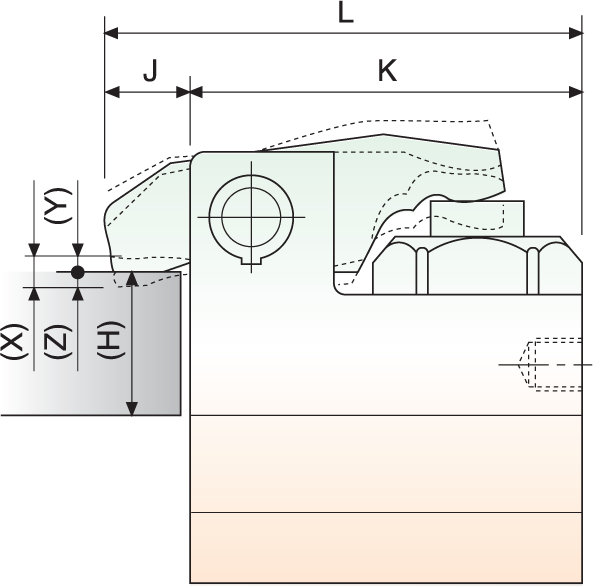

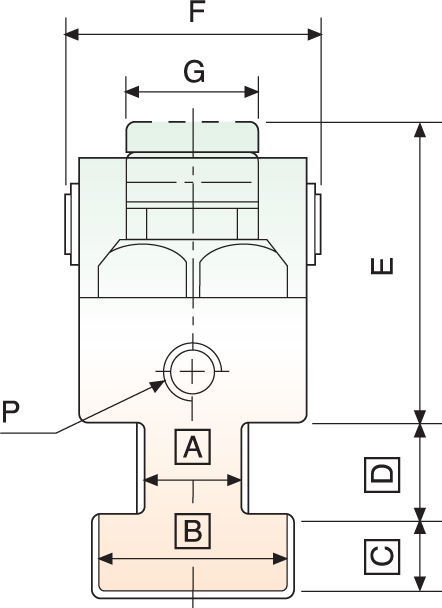

MODEL CB - MODEL SELECTION

①	②
Capacity of clamp :1~25(25tons)	EMPTY: Standard type C: Pneumatic cylinder movable type B: Fixed type V: Temperature -resisting type

MODEL CD ( AUTO SLIDE CLAMP ) - MODEL SELECTION

①	②	③	④	⑤	⑥	⑦
Capacity of clamp: 4.6.10 (tons)	S:stroke 400~1300	Teminal box R:right side L:left side	H: Die template thinckness	P: Distance between seat & Slide	V: Proximity switch voltage 1. AC90~240V(2-Wire) 3: DC10~30V(NPN, 3-Wire) 4: DC10~30(PNP,3-Wire)	Solenoid valve: 0: No solenoid 1: AC110V 2: AC220V 3. DC24V
