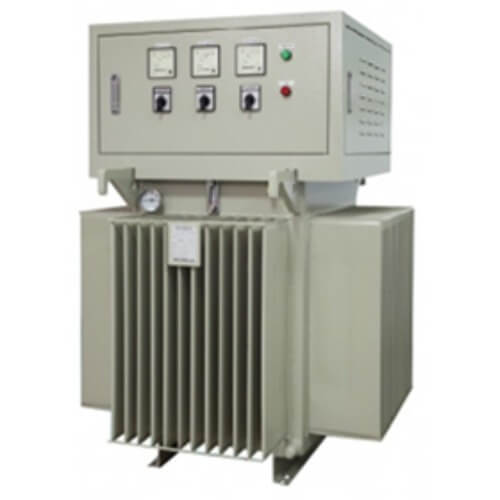

E-4 Induction Electronic AVR / Stabilizer (PLR)

классификация: Three phase Automatic Voltage Regulator / Stabilizer

CNE ELECTRICAL CO., LTD.

Страна: Taiwan

Телефон: 03-341-1860

факс: 03-341-1826

Контактное лицо: Mr. Allen Chen

Запрос сейчас

Solid mechanism and durable
Intelligent logic voltage regulation design
Adopt no-contact voltage adjustment
Continuous stepless voltage regulating design
Output voltage in linear voltage increased and decreased control
Output voltage free of noise interference
No distortion
Self-detecting function
Alarm for abnormal high/low voltage output
Alarm for abnormal phase loss and phase reverse
Alarm for abnormal temperature
Allowed for externally connecting tripping switch for performing cut-off power function
With voltmeter and ammeter to monitor the use of 3 phase
Efficiency higher than 98%

Model No. (PLR-)	3300	3400	3500	3600	3750	31000	31250	31500	31750	32000	32500
Capacity (KVA)	300	400	500	600	750	1000	1250	1500	1750	2000	2500
Voltage	X2: 3ψ3W 220V series (I/P and O/P are the same) X3: 3ψ3W 380V series (I/P and O/P are the same) X4: 3ψ3W 415V series (I/P and O/P are the same)
Frequency	50 or 60Hz ±5%
Input Range	±15%
Output Range	±10% adjustable
Output Accuracy	Within ±1.5%
Efficiency	≧98%
Waveform Distortion	No distortion (the same with input waveform)
Fault Warning	When voltage too high, too low, phase failure, phase reverse and over temperature, it will alarm automatically
Panel Indicator	Input voltmeter, output voltmeter, output ammeter, fault lamp, power lamp
Environment	Temperature: 0℃～40℃ Humidity: 20%～90% RH (Non-Condensing)
