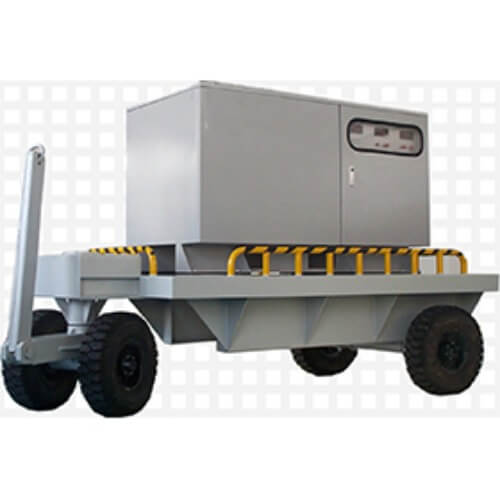

F-3 AMF series400Hz Power Supply / Ground Power

классификация: C Source Frequency Converter

CNE ELECTRICAL CO., LTD.

Страна: Taiwan

Телефон: 03-341-1860

факс: 03-341-1826

Контактное лицо: Mr. Allen Chen

Запрос сейчас

Optional overload function: 120% for 60mins, 150% for 60secs, and 200% for 15secs
Coupled with 4 LED displays to show measurements of voltage, current, frequency and power at once
Comprehensive protection includes over voltage, over current, over load, input under voltage and over temperature with corresponding error codes
Patented power module design with compact size for easier maintenance and high power density
Able to operate under unbalanced load conditions
Able to handle reverse energy generated by motor type UUT
Follows standards of MIL-STD-704, GJB181A and GJB572A

Table 1 — Single-Phase Output (AMF-500W ~ AMF-31100)

Model	AMF-500W	AMF-11001	AMF-11003	AMF-11005	AMF-11010	AMF-31020	AMF-31030	AMF-31045	AMF-31060	AMF-31100
Capacity	500VA	1KVA	3KVA	5KVA	10KVA	20KVA	30KVA	45KVA	60KVA	100KVA
Circuit Type	Transistor Amplifier Type		IGBT / Pulse Width Modulation Type
Input (AC) — Phase	1Phase 2W+G					3Phase 3W+G (△) or 3Phase 3W+N+G (Y)
Input (AC) — Voltage	110(B) or 220V(G) ±15%	220V (G) ±15%				220V (G) ±15% or 220V/380V (T) ±15%
Input (AC) — Frequency	50Hz±3Hz, 60Hz±3Hz
Output (AC) — Phase	1Phase 2W+G
Output (AC) — Voltage	115V (C) or 220V (G), 230V (H) Output Voltage +/-10% Adjustable
Output (AC) — Frequency	2-Step Output Frequency: 400Hz Fixed, 350Hz~450Hz adjustable (can comply with customer's specs)
Frequency Stability	≤0.01%
Load Regulation	≤ ±1%							≤ ±1.5%
Total Harmonic Distortion	≤2%							≤3%
Meter/Res — 4 Digit Freq. Meter	Res. 0.1Hz
Meter/Res — 4 Digit Voltmeter	Res. 0.1V
Meter/Res — Digit Ammeter	0.001A	0.01A	4 Digit Ammeter / Res. 0.1A					5 Digit Ammeter / Res. 0.1A
Overload Capability	120% / 1hr, 150% / 1min, 200% / 15sec, 25% duty cycle.
Protection	Input Circuit Breaker, Output Circuit Breaker, Electronic Circuits for fast detection and trip off protection for Over Current, Over Voltage, Over Load, Over Temperature, Short Circuit and Alarm system
Isolation Resistance	≥500Vdc 20MΩ
Withstand Voltage	1800Vac / 5mA / 1min
Cooling System	Air Forced Fan
Ambient Temperature	-20℃ ~ 45℃
Relative Humidity	0~90% Non-condensing
Case Number	①	②		③		④		⑤		⑥
Net Weight (kg)	44	60	73	89	150	280	333	418	571	898

Model	AMF-33006	AMF-33010	AMF-33015	AMF-33020	AMF-33030	AMF-33045	AMF-33060	AMF-33075
Capacity	6KVA	10KVA	15KVA	20KVA	30KVA	45KVA	60KVA	75KVA
Circuit Type	IGBT / Pulse Width Modulation Type
Input (AC) — Phase	3Phase 3W+G (△) or 3Phase 3W+N+G (Y)
Input (AC) — Voltage	3W+G: 220V (G) or 3W+N+G: 220V/380V (T) ±15%
Input (AC) — Frequency	50Hz±3Hz, 60Hz±3Hz
Output (AC) — Phase	3Phase 3W+N+G (Y)
Output (AC) — Voltage	200V/115V (P) Output Voltage +/-10% Adjustable
Output (AC) — Frequency	2-Step Output Frequency: 400Hz Fixed, 350Hz~450Hz adjustable (can comply with customer's specs)
Frequency Stability	≤0.01%
Load Regulation	≤ ±1%						≤ ±1.5%
Total Harmonic Distortion	≤2%						≤3%
Meter/Res — 4 Digit Freq. Meter	Res. 0.1Hz
Meter/Res — 4 Digit Voltmeter	Res. 0.1V
Meter/Res — Digit Ammeter	4 Digit Ammeter / Res. 0.1A						5 Digit Ammeter / Res. 0.1A
Phase Shift	Balanced Load / Empty Load: ≤ ±°; 100% Unbalanced Load: ≤ ±°
Overload Capability	120% / 1hr, 150% / 1min, 200% / 15sec, 25% duty cycle.
Protection	Input Circuit Breaker, Output Circuit Breaker, Electronic Circuits for fast detection and trip off protection for Over Current, Over Voltage, Over Load, Over Temperature, Short Circuit and Alarm system
Isolation Resistance	≥500Vdc 20MΩ
Withstand Voltage	1800Vac / 5mA / 1min
Cooling System	Air Forced Fan
Ambient Temperature	-20℃ ~ 45℃
Relative Humidity	0~90% Non-condensing
Case Number	③		④			⑤
Net Weight (kg)	150	175	265	345	385	528	635	700

Model	AMF-33100	AMF-33120	AMF-33150	AMF-33180	AMF-33200	AMF-33250	AMF-33300
Capacity	100kVA	120kVA	150kVA	180kVA	200kVA	250kVA	300kVA
Circuit Type	IGBT / Pulse Width Modulation Type
Input (AC) — Phase	3Phase 3W+G (△) or 3Phase 3W+N+G (Y)
Input (AC) — Voltage	3W+G: 220V (G) or 3W+N+G: 220V/380V (T) ±15%
Input (AC) — Frequency	50Hz±3Hz, 60Hz±3Hz
Output (AC) — Phase	3Phase 3W+N+G (Y)
Output (AC) — Voltage	200V/115V (P) Output Voltage +/-10% Adjustable
Output (AC) — Frequency	2-Step Output Frequency: 400Hz Fixed, 350Hz~450Hz adjustable (can comply with customer's specs)
Frequency Stability	≤0.01%
Load Regulation	≤ ±1.5%
Total Harmonic Distortion	≤3%
Meter/Res — 4 Digit Freq. Meter	Res. 0.1Hz
Meter/Res — 4 Digit Voltmeter	Res. 0.1V
Meter/Res — Digit Ammeter	5 Digit Ammeter / Res. 0.1A
Phase Shift	Balanced Load / Empty Load: ≤ ±°; 100% Unbalanced Load: ≤ ±°
Overload Capability	120% / 1hr, 150% / 1min, 200% / 15sec, 25% duty cycle.
Protection	Input Circuit Breaker, Output Circuit Breaker, Electronic Circuits for fast detection and trip off protection for Over Current, Over Voltage, Over Load, Over Temperature, Short Circuit and Alarm system
Isolation Resistance	≥500Vdc 20MΩ
Withstand Voltage	1800Vac / 5mA / 1min
Cooling System	Air Forced Fan
Ambient Temperature	-20℃ ~ 45℃
Relative Humidity	0~90% Non-condensing
Case Number	⑥		⑦				⑧
Net Weight (kg)	1000	1200	1350	1800	2000	2270	2740
