PURPOSE OF MACHINE
- This double-side rewinding machine can do more serious inspection for the better quality, especially for packages of medical, cosmetics and some high-price food products. Integrated with automatic defect system, this machine can reach precise and continuous inspection to ensure zero defects.
Memory Function
- When any defect is detected by human-eyes, press INSPECTION button and then the machine reverses automatically, the defects will be stopped at center of inspection table for operator to easily find and cut off the part.
Man-machine Interface (MMI)
- All models come standard with MMI touch screen interface. The touch screen has high resolution color as well as a long service life. All models come standard with independent and free-standing operator panels.

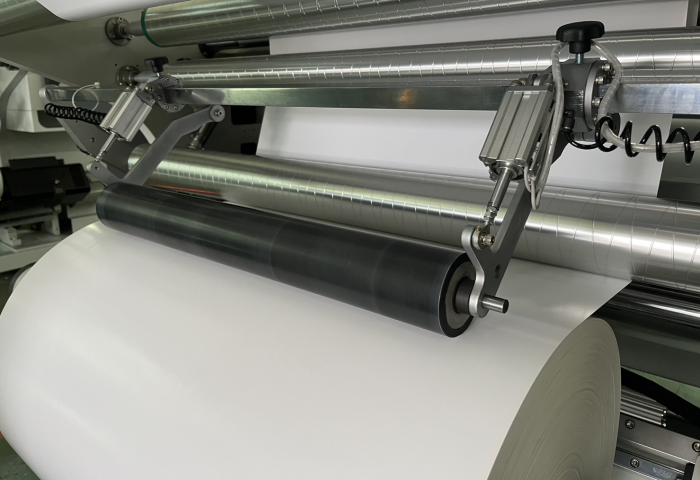

Pressure Wheel
Speed(M/min) | 300 |
---|---|
Available width(mm) | 1300/1600 |
Unwind diameter(mm) | 800 |
Rewind diameter(mm) | 800 |
STANDARD | |
Digital guiding system | ● |
Shaftiess unwind/rewind | ● |
Shaft unwind/rewind | N/A |
Cantileverd unwind/rewind unit with 3” air shaft | N/A |
Forward and backward operation | ● |
Tension transducers for unwind and rewind unit | ● |
Dancer tension control on unwind and rewind unit | N/A |
Taper tension mode | ● |
OPTIONAL | |
Auto. Defects detection system(100% inspection) | ● |
Stroboscope | ● |
Splice Table | ● |
Trim Slitting System | ● |
Unwind and rewind diameter increase – 1000mm. | ● |
Unwind 6” chuck | ● |
Rewind 6” chuck | ● |
CE/UL | ● |
